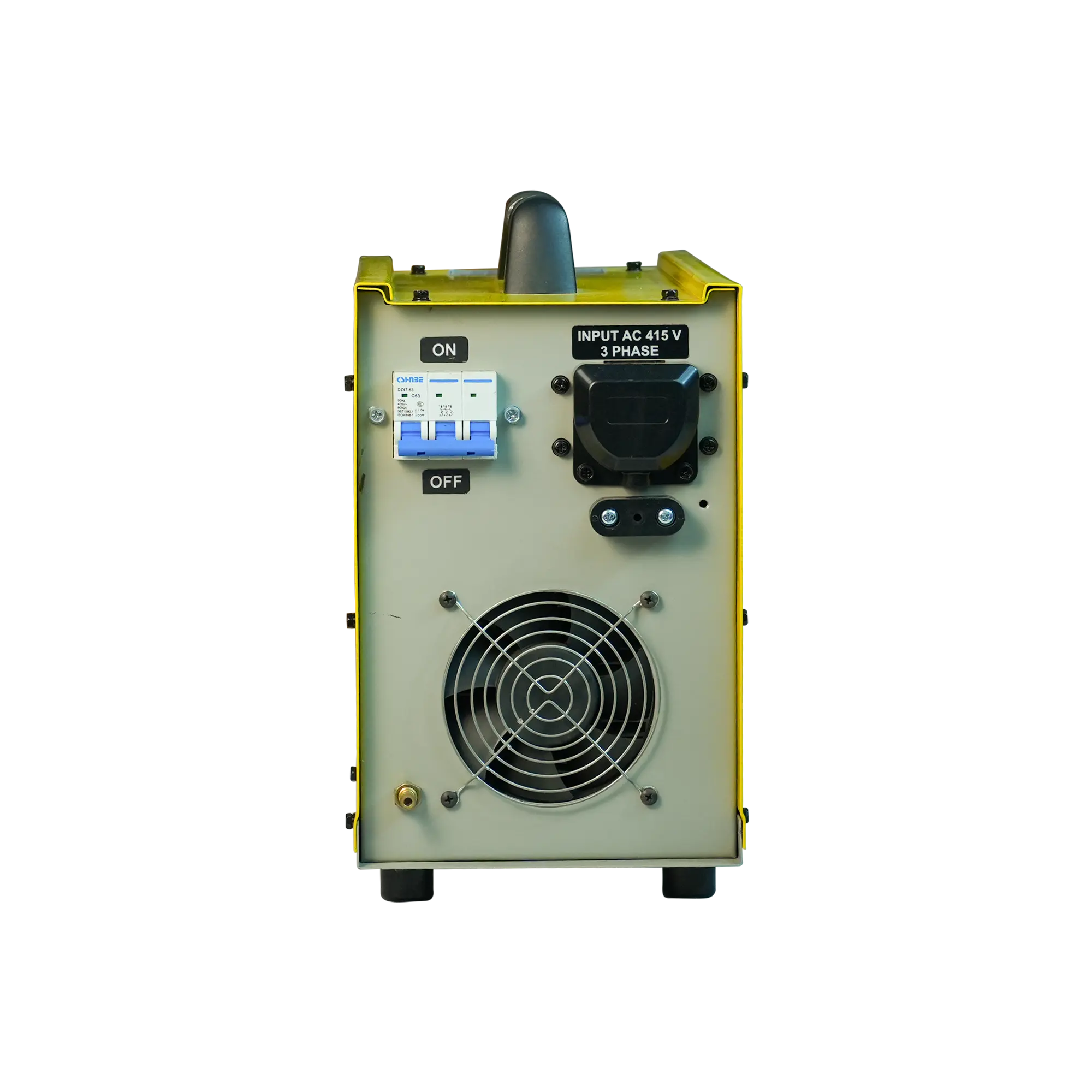

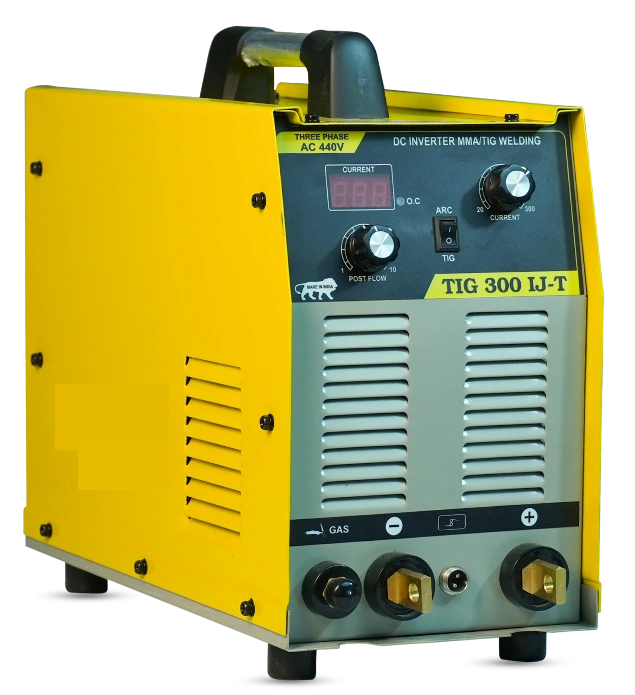

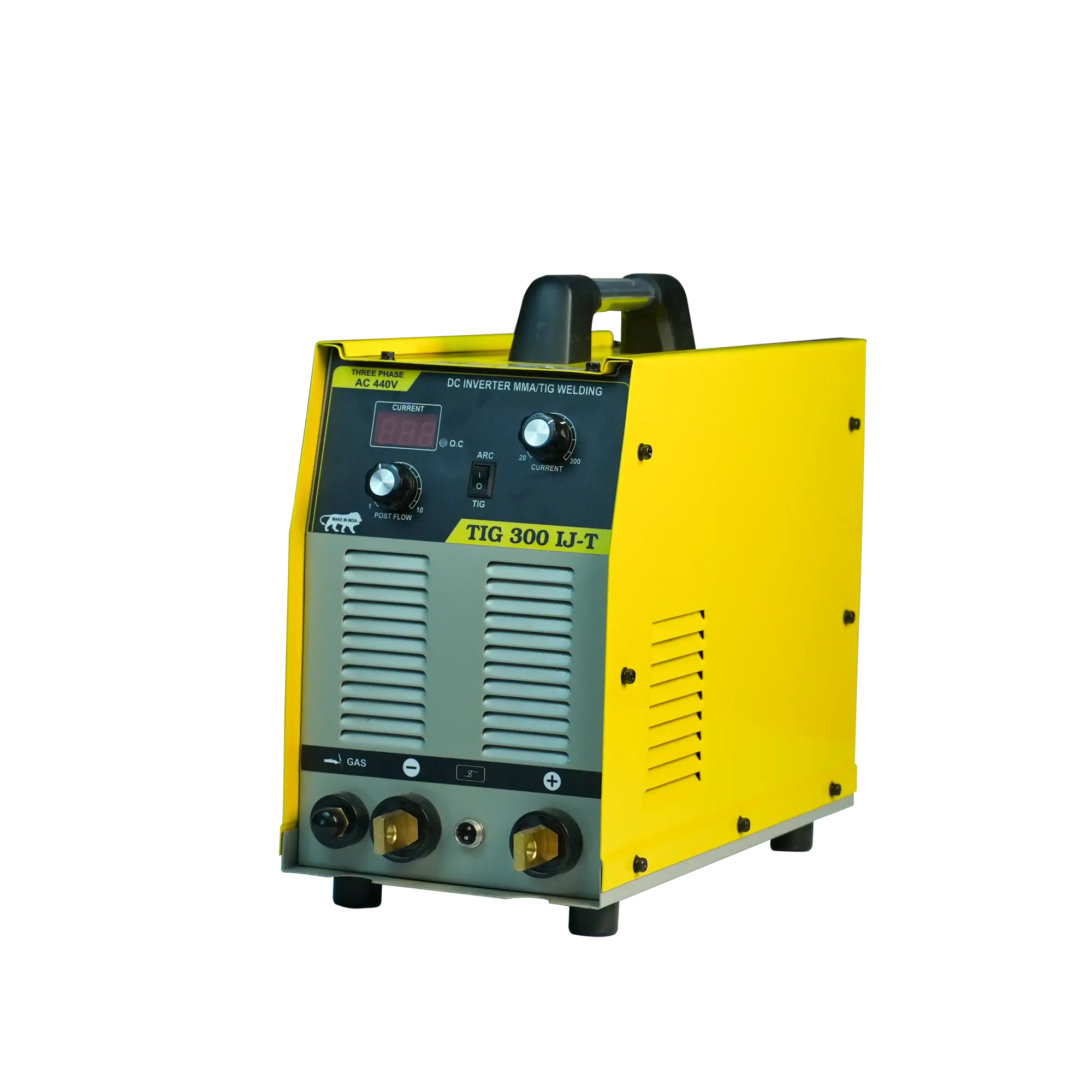

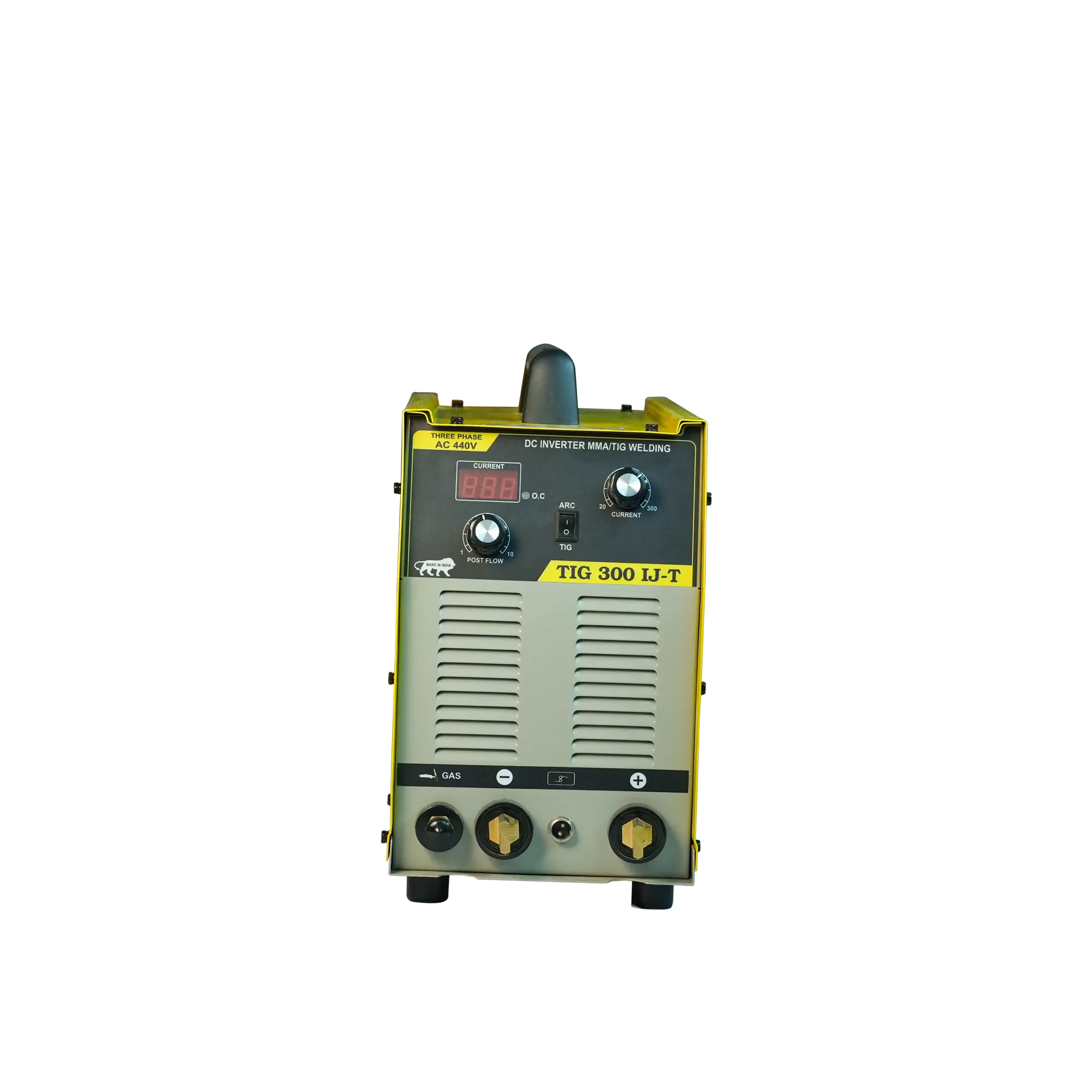

TIG 300 IJ-T Three-Phase Industrial TIG Welder
The TIG 300 IJ-T is a powerful three-phase TIG welding system built for demanding industrial conditions requiring uncompromised stability and precision. With its 20–300A output and industrial-grade IGBT technology, this model delivers exceptional arc quality and deep penetration for stainless steel, mild steel, and specialized materials. Its dual-purpose TIG + MMA capability adds practical versatility for fabrication units. The machine includes advanced safety features such as over-current and over-voltage protection, ensuring consistent performance during long-hour welding. Compact yet rugged, the TIG 300 IJ-T offers smooth control, high duty cycles, and superior cooling—making it a preferred choice for industrial fabricators, metal manufacturers, and engineering workshops.
₹34,810
Key Engineering Parameters
20A-300A
AC 415V
60
Advanced Inverter Architecture
1.6mm - 5.0mm Compatible
IP21S
Live Showroom Demo & Immediate Pickup
Peenya Industrial Area, Bengaluru · Mon–Sat: 9:00 AM – 8:00 PM

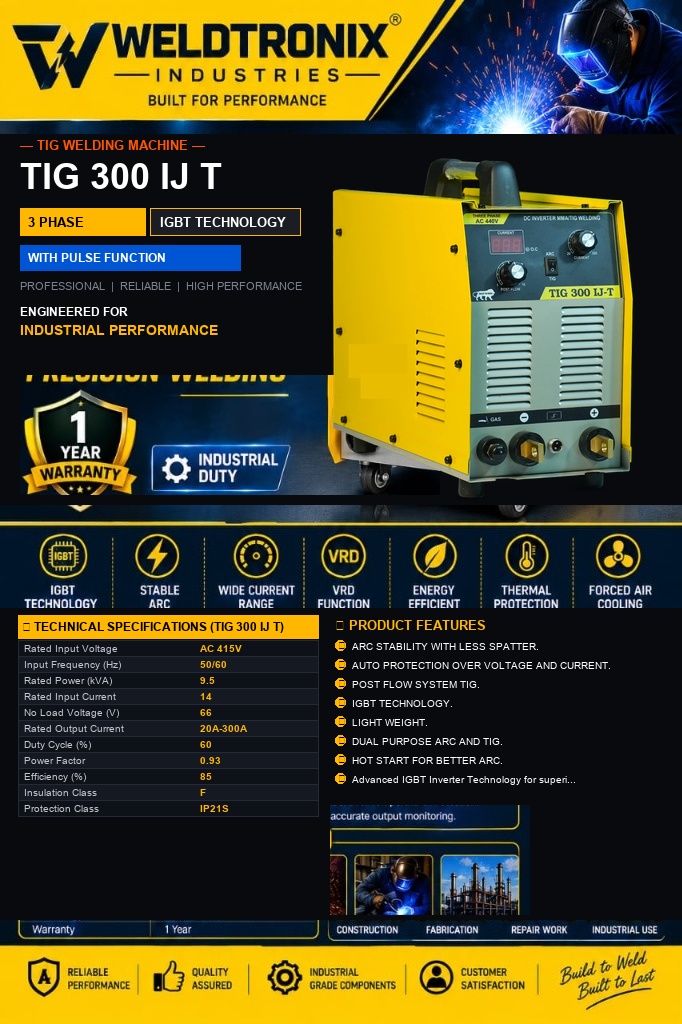

Engineering Datasheet & Applications
| Rated Input Voltage (V) | AC 415V |
|---|---|
| Input Frequency (Hz) | 50/60 |
| Rated Power (kVA) | 9.5 |
| Rated Input Current (A) | 14 |
| No Load Voltage (V) | 66 |
| Rated Output Current (A) | 20A-300A |
| Duty Cycle (%) | 60 |
| Power Factor | 0.93 |
| Efficiency (%) | 85 |
| Insulation Class | F |
| Protection Class | IP21S |
| Gross Weight (kg) | 13 |
| Welder Size | 410×205×330 |
| Packing Size | 482×280×410 |
| Wire & Electrode Dia | 1.6–3.15 & 1.6–3.15 |
