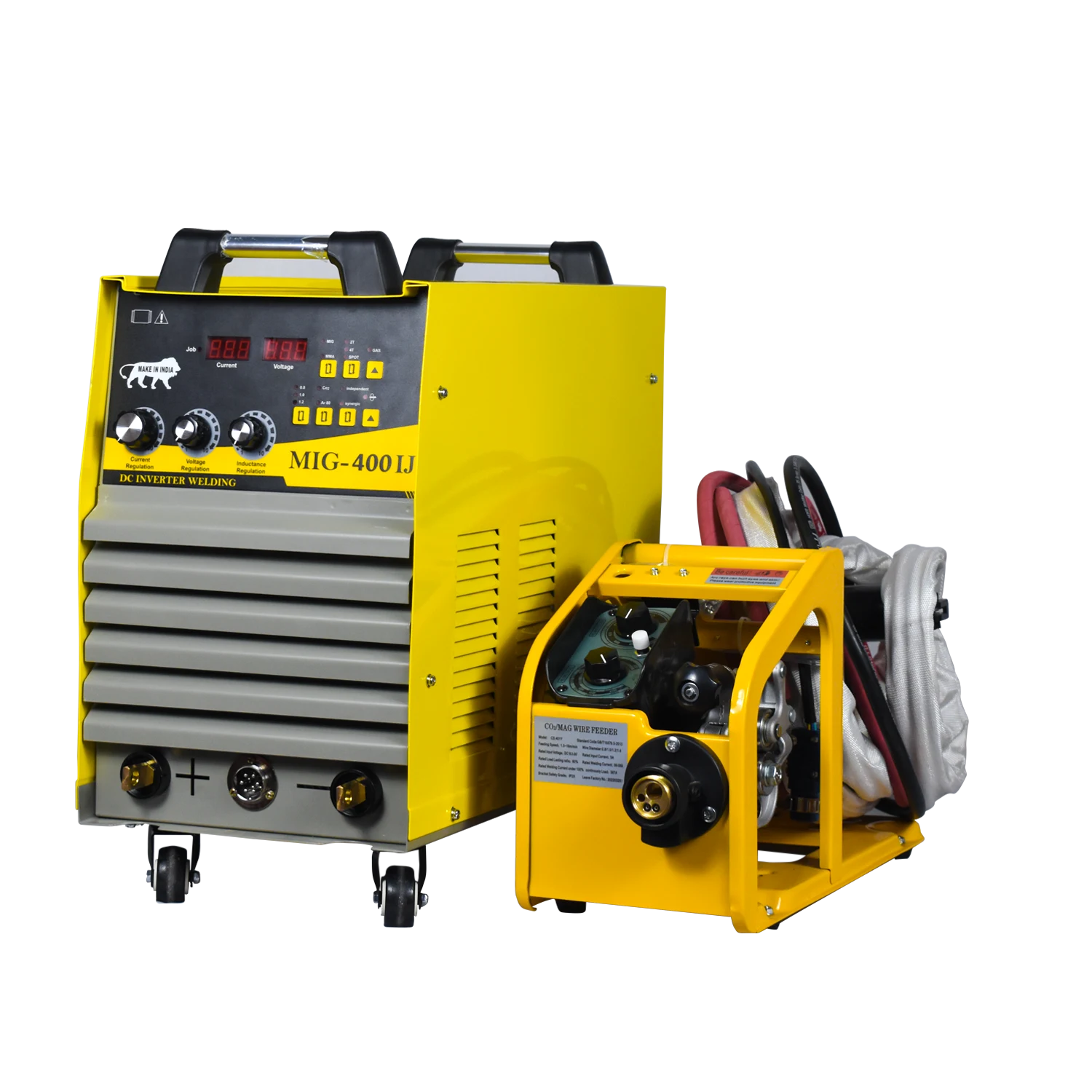

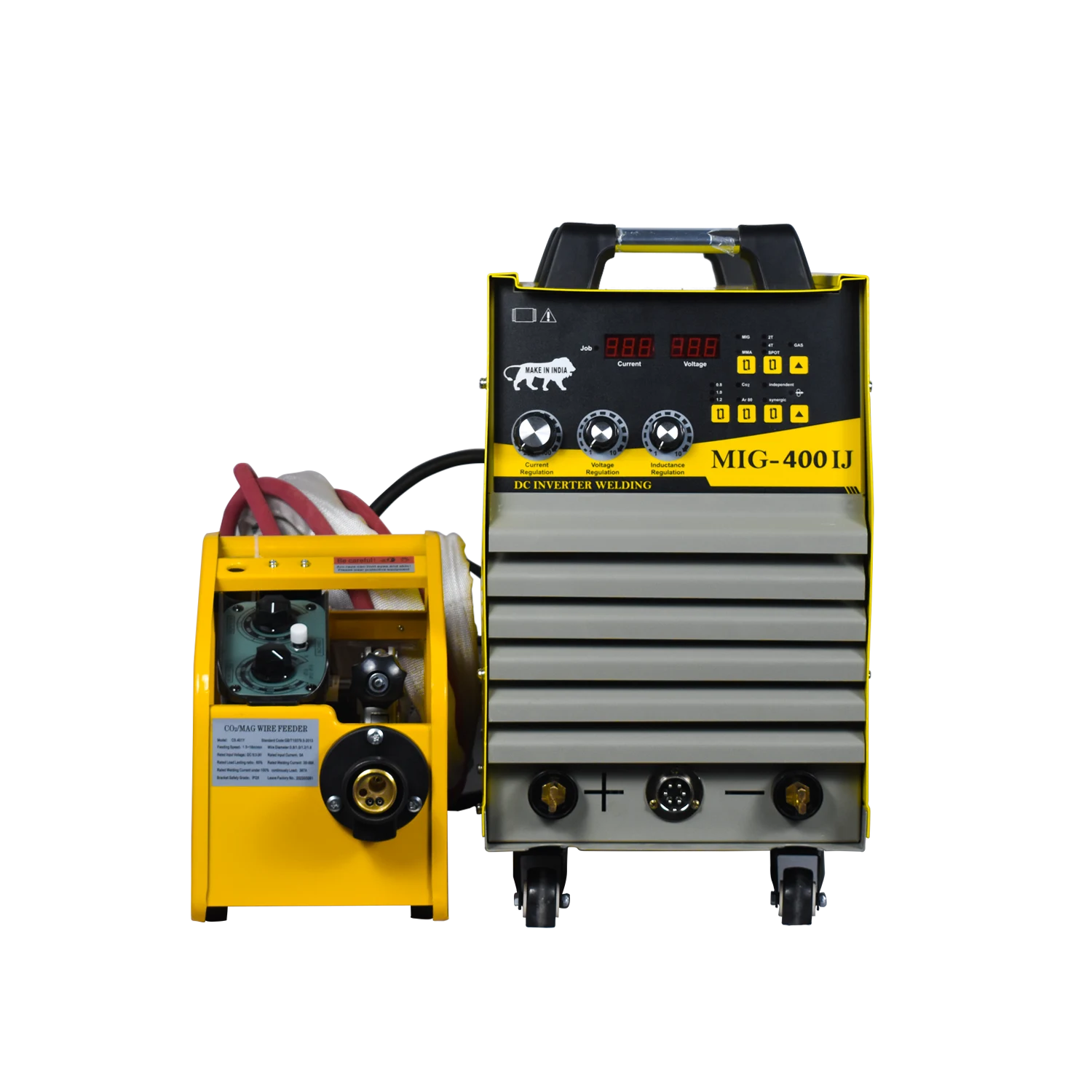

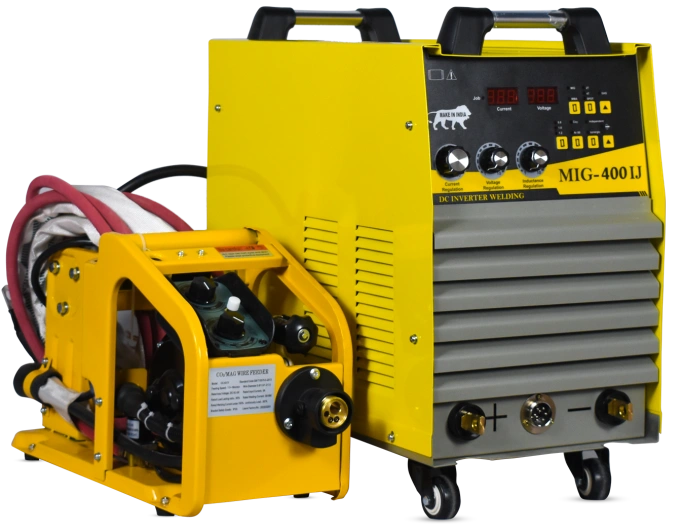

The MIG 400 IJ is three-phase welding machine engineered for heavy fabrication facilities requiring stronger weld output and higher duty cycles. Delivering a consistent 20–400A MIG output and 20–370A MMA output, it is a versatile machine suitable for welding thicker materials with 0.8mm, and 1.2mm wires. Its industrial-grade IGBT modules ensure a stable arc, low spatter, and excellent metal transfer quality, making it ideal for long-hour welding operations. The detachable wire feeder provides maximum control and precision for high-strength welds in automotive fabrication, steel furniture manufacturing, and heavy metal structures. The MIG 400 IJ features reliable thermal protection, intelligent voltage control, and superior cooling to support continuous operation in challenging industrial conditions. Built for durability and performance, it’s a perfect solution for workshops that demand endurance and professional-grade weld quality.
₹73,160
MIG 20-400 / MMA 20-370
415V ±15% 3-Phase
60% @ 400A
Dual IGBT Module
1.6mm - 5.0mm Compatible
IP21S
Live Showroom Demo & Immediate Pickup
Peenya Industrial Area, Bengaluru · Mon–Sat: 9:00 AM – 8:00 PM
| Technology | Dual IGBT Module |
|---|---|
| Input Voltage | 415V ±15% 3-Phase |
| Output Current | MIG: 200-400A, MMA: 200-300A |
| Wire Compatibility | 0.8-1.6mm |
| Duty Cycle | 60% @ 400A |
| Wire Feeder | Dual Drive Euro Type |
| Voltage Regulation | ±2% |
| Torch | 43SQMM 100% Copper |
| Weight | 25.5 kg |
| Applications | Structural Steel, Shipbuilding, Heavy Equipment |
| Gas Compatibility | CO2, Argon/CO2 Mix |
| Rated Input Voltage (V) | 415V ±15% |
| Input Frequency (Hz) | 50/60 |
| Rated Power (kVA) | 20.7 |
| Rated Input Current (A) | 31 |
| No Load Voltage (V) | 75 |
| Rated Output Current (A) | MIG 20-400 / MMA 20-370 |
| Duty Cycle (%) | 60 |
| Power Factor | 0.93 |
| Efficiency (%) | 85 |
| Insulation Class | F |
| Protection Class | IP21S |
| Gross Weight (kg) | 48 |
| Igbt | 100A1200×2 MODULE |
| Rectifier Tube | 200A600V×2 MODULE |
| Bridge Diode | 100A1600V |
| Choke | YES |

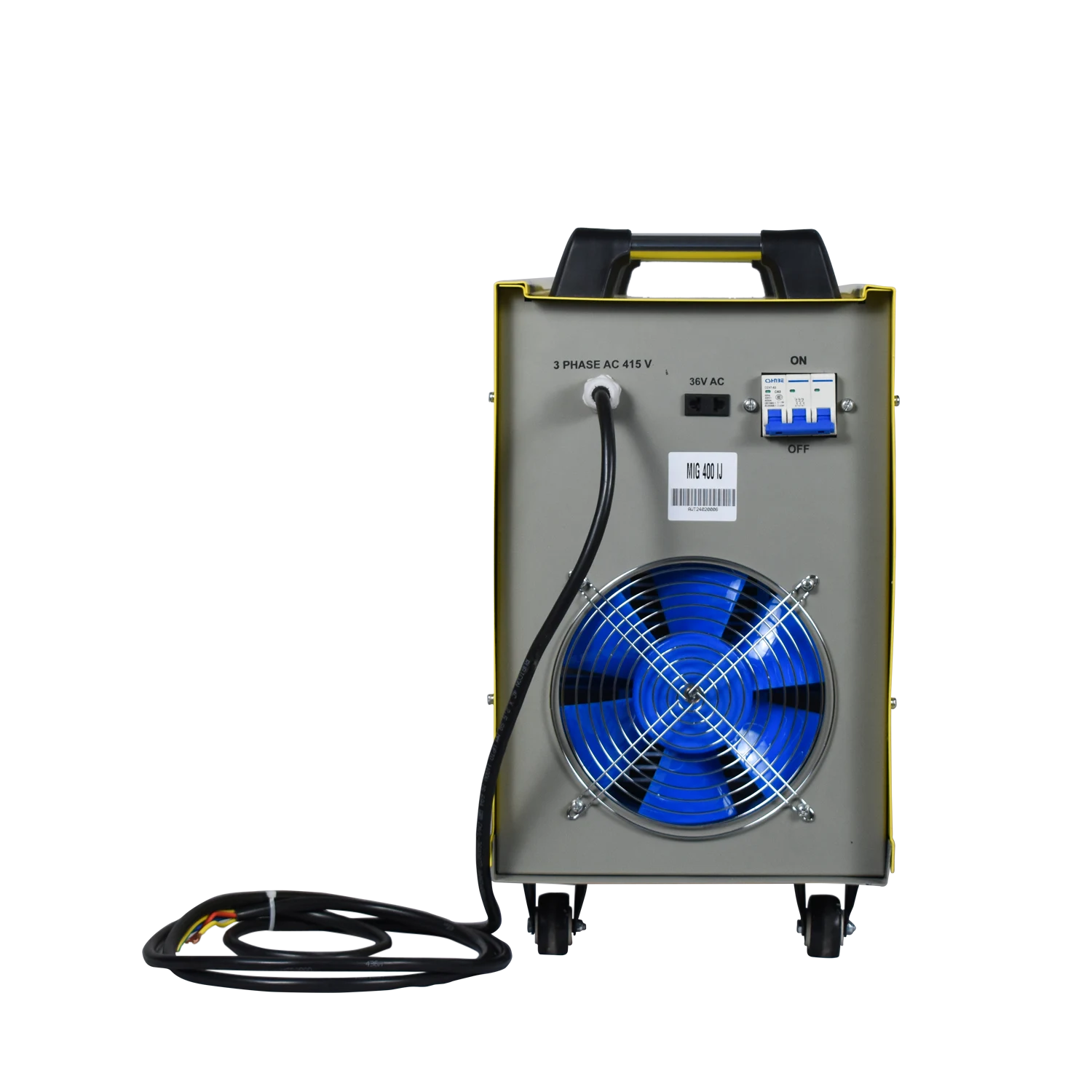

| Fan | 8 INCH 415V |
| Welder Size | 530×285×505 |
| Packing Size Welder | 630×380×610 |
| Packing Size Feeder | 584×215×380 |
| Supported Wire | 0.8(100%) - 1.0(100%) - 1.2(100%) |
