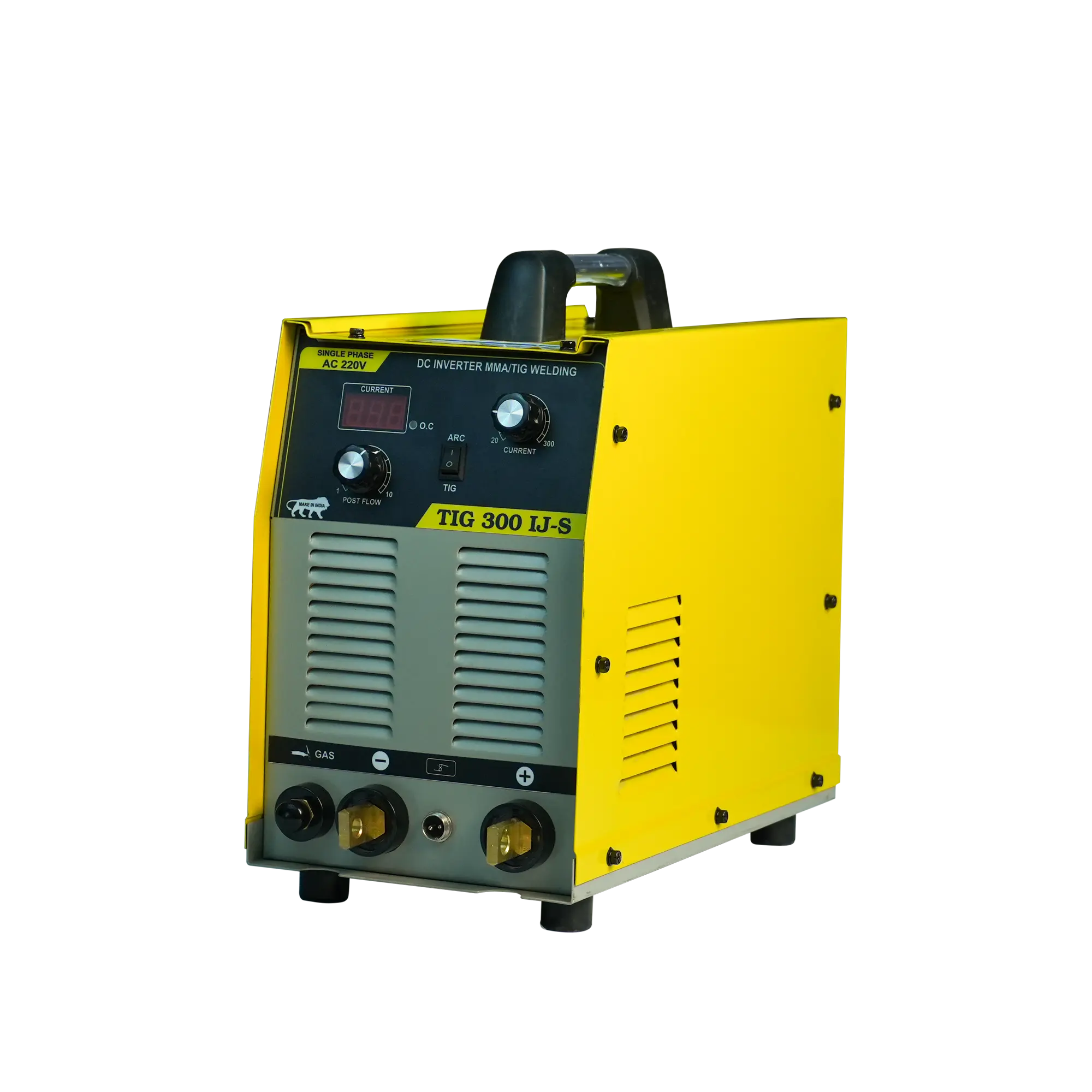

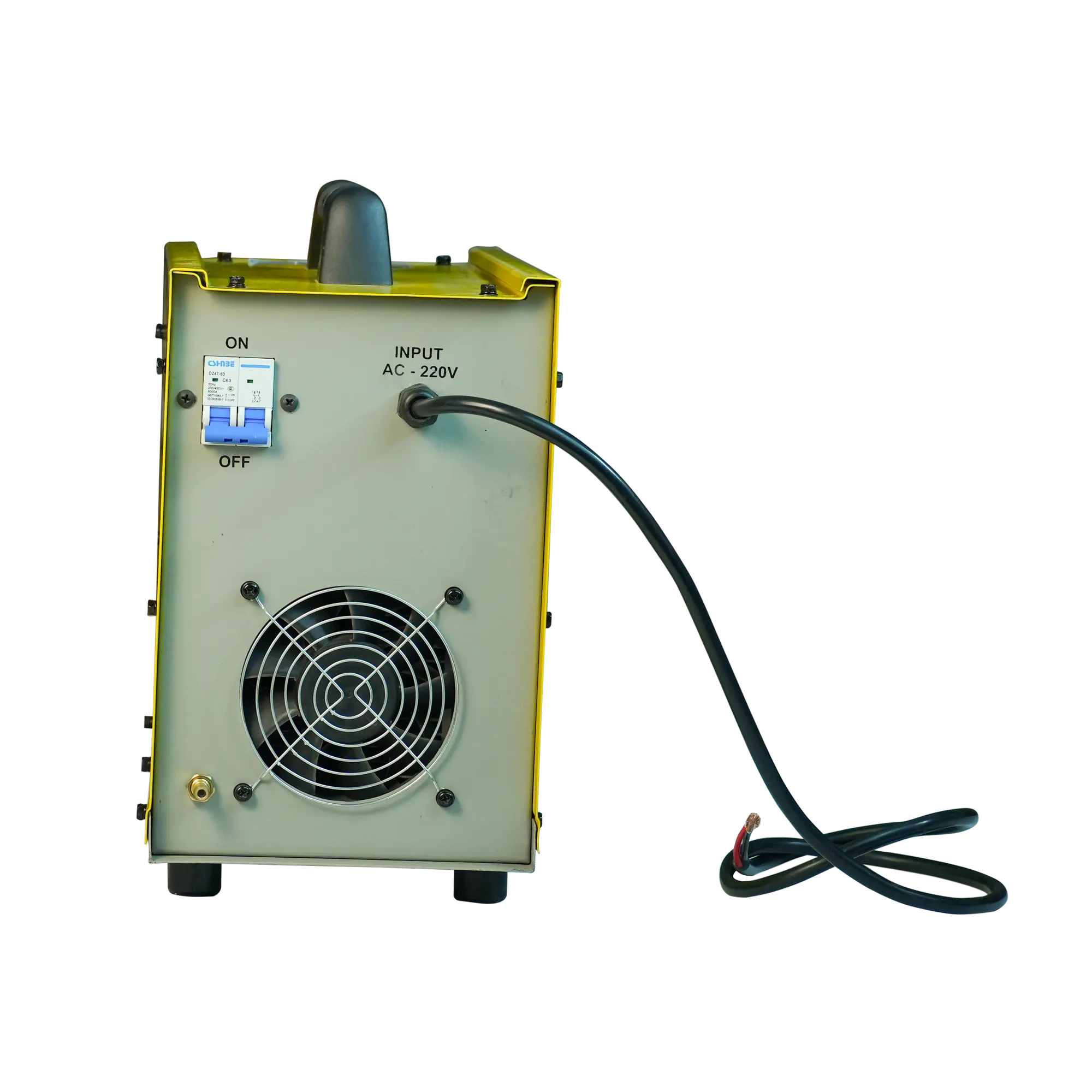

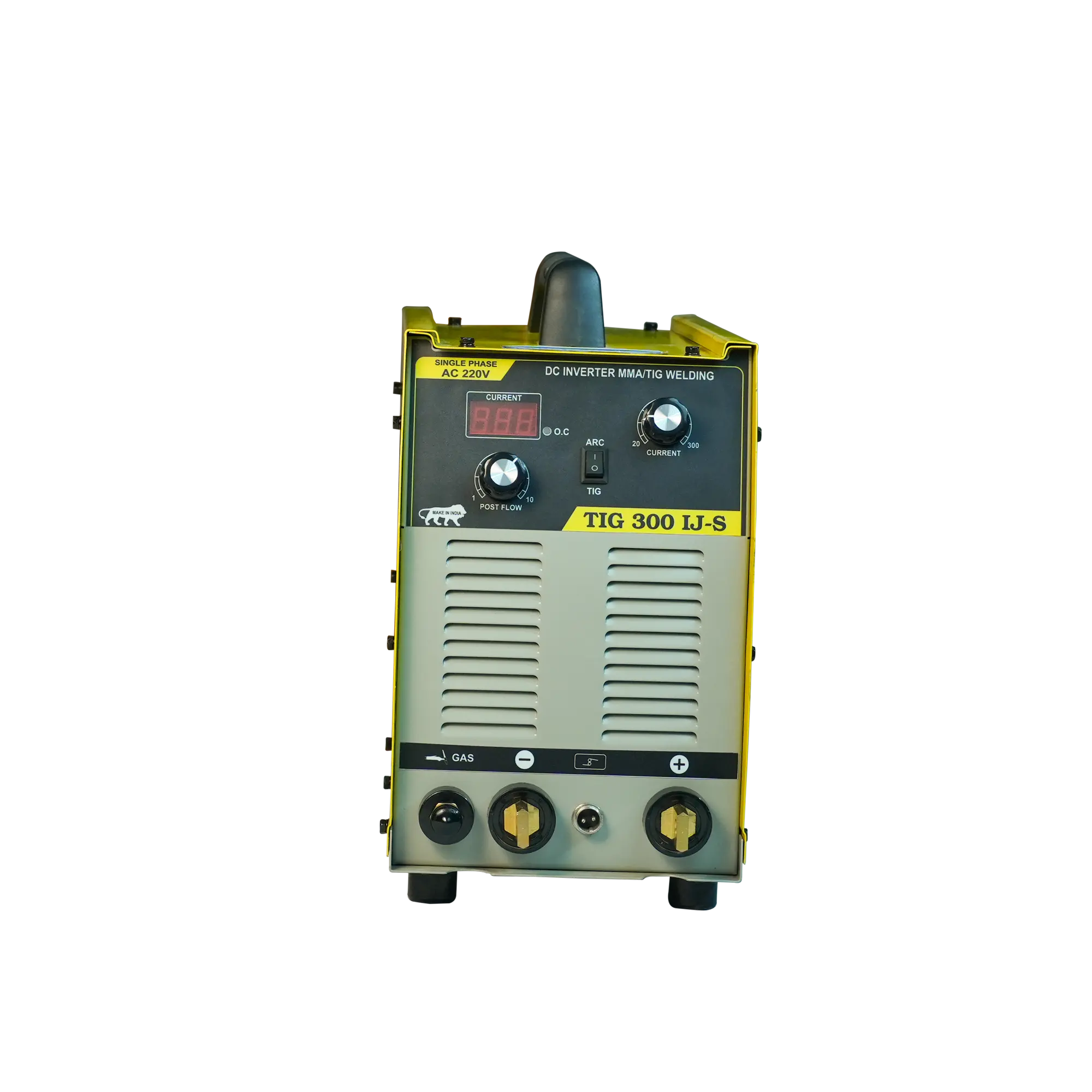

The TIG 300 IJ-S is engineered for heavy-duty precision welding, offering a robust 20–300A output suited for both fine TIG welding and powerful MMA welding tasks. Its IGBT inverter technology delivers outstanding arc stability, deeper penetration, and cleaner weld beads with significantly reduced spatter. Ideal for industrial fabrication, this machine supports 1.6–3.15mm tungsten electrodes and delivers smooth performance even during prolonged use. Advanced features such as post-flow control, hot start, and intelligent overload protection ensure professional-grade results every time. Despite its high output, it remains portable with an ergonomic design—perfect for workshops, fabrication units, and maintenance teams requiring reliability and top-tier welding accuracy.
₹30,090
20A-300A
AC 220V
60
Advanced Inverter Architecture
1.6mm - 5.0mm Compatible
IP21S
Live Showroom Demo & Immediate Pickup
Peenya Industrial Area, Bengaluru · Mon–Sat: 9:00 AM – 8:00 PM
| Rated Input Voltage (V) | AC 220V |
|---|---|
| Input Frequency (Hz) | 50/60 |
| Rated Power (kVA) | 7.3 |
| Rated Input Current (A) | 45 |
| No Load Voltage (V) | 60 |
| Rated Output Current (A) | 20A-300A |
| Duty Cycle (%) | 60 |
| Power Factor | 0.73 |
| Efficiency (%) | 85 |
| Insulation Class | F |
| Protection Class | IP21S |
| Gross Weight (kg) | 13 |
| Welder Size | 410×205×330 |
| Packing Size | 482×280×410 |
| Wire & Electrode Dia | 1.6–3.15 & 1.6–3.15 |
