MIG Series
Model SKU: MIG-300F-MOS(4.9/5 Industrial Rating)

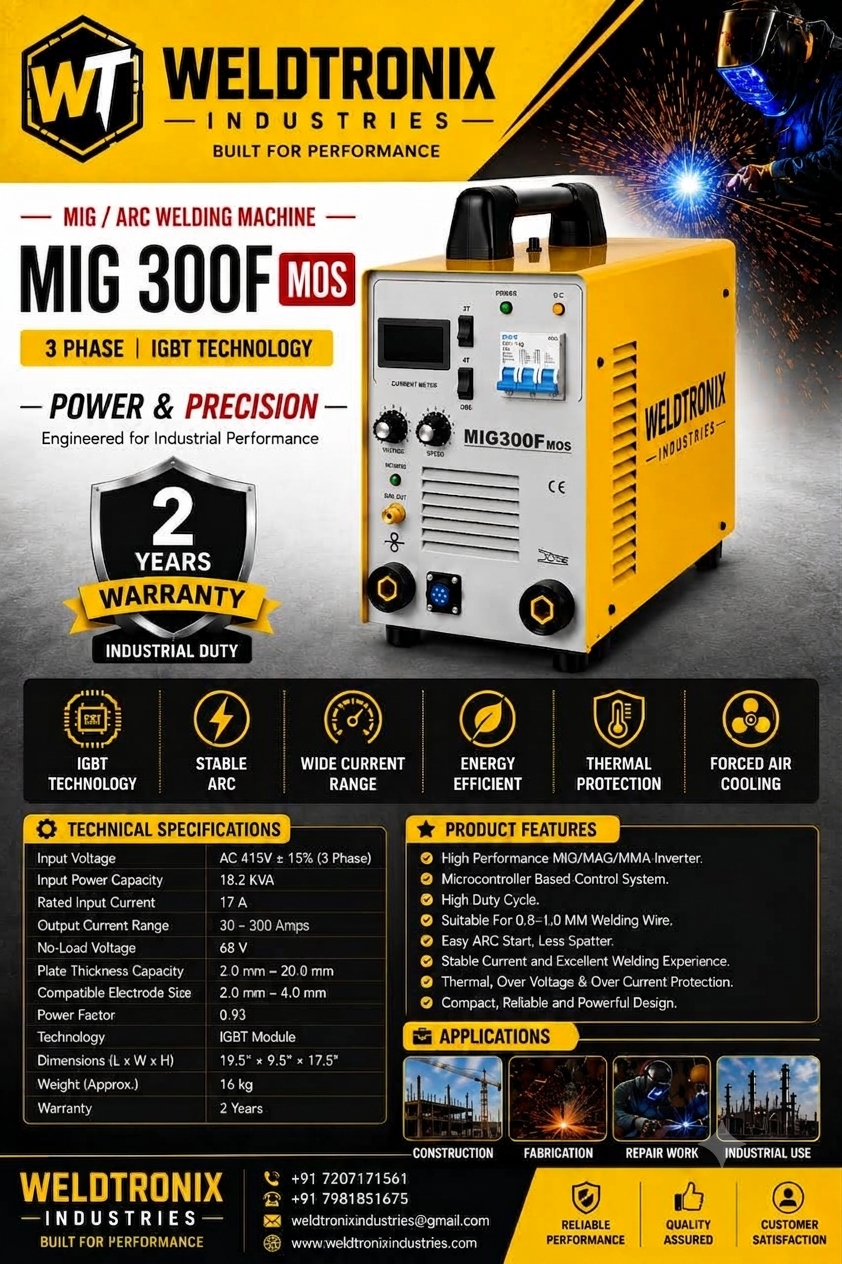

MIG 300F MOS MIG / ARC Welding Machine 3 Phase
The Weldtronix MIG 300F MOS is an industrial dual-function MIG/ARC welding machine engineered for performance, precision, and durability. Built with advanced discrete MOSFET/IGBT inverter technology, it provides high energy efficiency, wide current range, and extremely stable arc quality with minimal spatter. Ideal for automotive body shops, sheet metal fabrication, and general engineering works.
Commercial Ex-Warehouse Price
₹46,500+ 18% GST
Total Invoice (Incl. 18% GST):
₹54,870
GST Input Tax Credit (ITC) Available for Registered BusinessesHSN / SAC Code: 8468 / 8515
Key Engineering Parameters
Output Current
30A - 300A
Input Power Supply
AC 415V ±15%, 3 Phase, 50/60 Hz
Rated Duty Cycle
60% @ 300A
Inverter Technology
MOSFET / IGBT Inverter
Wire / Electrode Sizing
1.6mm - 5.0mm Compatible
Protection & Enclosure
Forced Air Cooling
Live Showroom Demo & Immediate Pickup
Peenya Industrial Area, Bengaluru · Mon–Sat: 9:00 AM – 8:00 PM
Technical Documentation & Support
Engineering Datasheet & Applications
| Technology | MOSFET / IGBT Inverter |
|---|---|
| Input Voltage | AC 415V ±15%, 3 Phase, 50/60 Hz |
| Output Current Range | 30A - 300A |
| Duty Cycle | 60% @ 300A |
| Welding Process | MIG / MAG and ARC (MMA) |
| Wire Feed Mechanism | Internal / Integrated Wire Feeder |
| Warranty | 2 Years |
| Cooling | Forced Air Cooling |
