PLASMA Series
Model SKU: CUT-200-PRO(4.9/5 Industrial Rating)

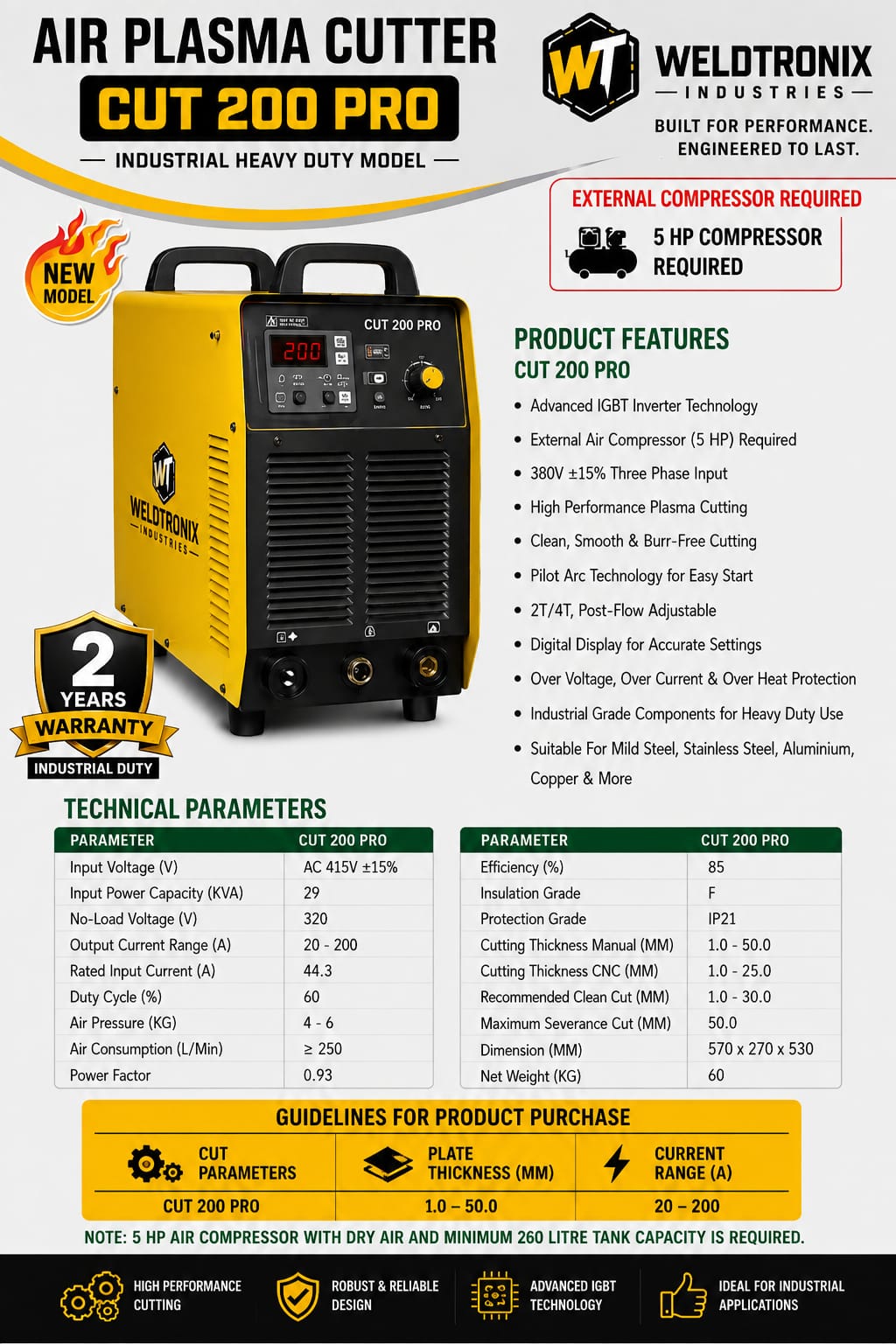

CUT 200 PRO Air Plasma Cutter Industrial Heavy Duty Model
Weldtronix CUT 200 PRO is an industrial heavy-duty air plasma cutting machine built for extreme performance. Features 415V 3-phase input, 20-200A cutting range, pilot arc technology for easy start, and severance cutting capability up to 50mm on mild steel, stainless steel, and aluminum. Supported by a 2 Years Industrial Duty Warranty.
Commercial Ex-Warehouse Price
₹1,45,000+ 18% GST
Total Invoice (Incl. 18% GST):
₹1,71,100
GST Input Tax Credit (ITC) Available for Registered BusinessesHSN / SAC Code: 8468 / 8515
Key Engineering Parameters
Output Current
20 - 200 A
Input Power Supply
AC 415V ±15% (3 Phase)
Rated Duty Cycle
60%
Inverter Technology
Advanced Inverter Architecture
Wire / Electrode Sizing
1.6mm - 5.0mm Compatible
Protection & Enclosure
IP21S Industrial Enclosure
Live Showroom Demo & Immediate Pickup
Peenya Industrial Area, Bengaluru · Mon–Sat: 9:00 AM – 8:00 PM
Technical Documentation & Support
Engineering Datasheet & Applications
| Input Voltage (V) | AC 415V ±15% (3 Phase) |
|---|---|
| Input Power Capacity (kVA) | 29 kVA |
| No-Load Voltage (V) | 320 V |
| Output Current Range (A) | 20 - 200 A |
| Rated Input Current (A) | 44.3 A |
| Duty Cycle (%) | 60% |
| Air Pressure (kg) | 4 - 6 kg |
| Air Consumption (L/min) | ≥ 250 L/Min |
| Power Factor | 0.93 |
| Efficiency (%) | 85% |
| Insulation Grade | F |
| Protection Grade | IP21 |
| Cutting Thickness Manual (mm) | 1.0 - 50.0 mm |
| Cutting Thickness CNC (mm) | 1.0 - 25.0 mm |
| Recommended Clean Cut (mm) | 1.0 - 30.0 mm |
| Maximum Severance Cut (mm) | 50.0 mm |
| Dimensions (mm) | 570 x 270 x 530 |
| Net Weight (kg) | 60 kg |
| External Compressor Required | 5 HP Compressor (Dry Air, Min 260L Tank) |
| Warranty | 2 Years Industrial Duty |
