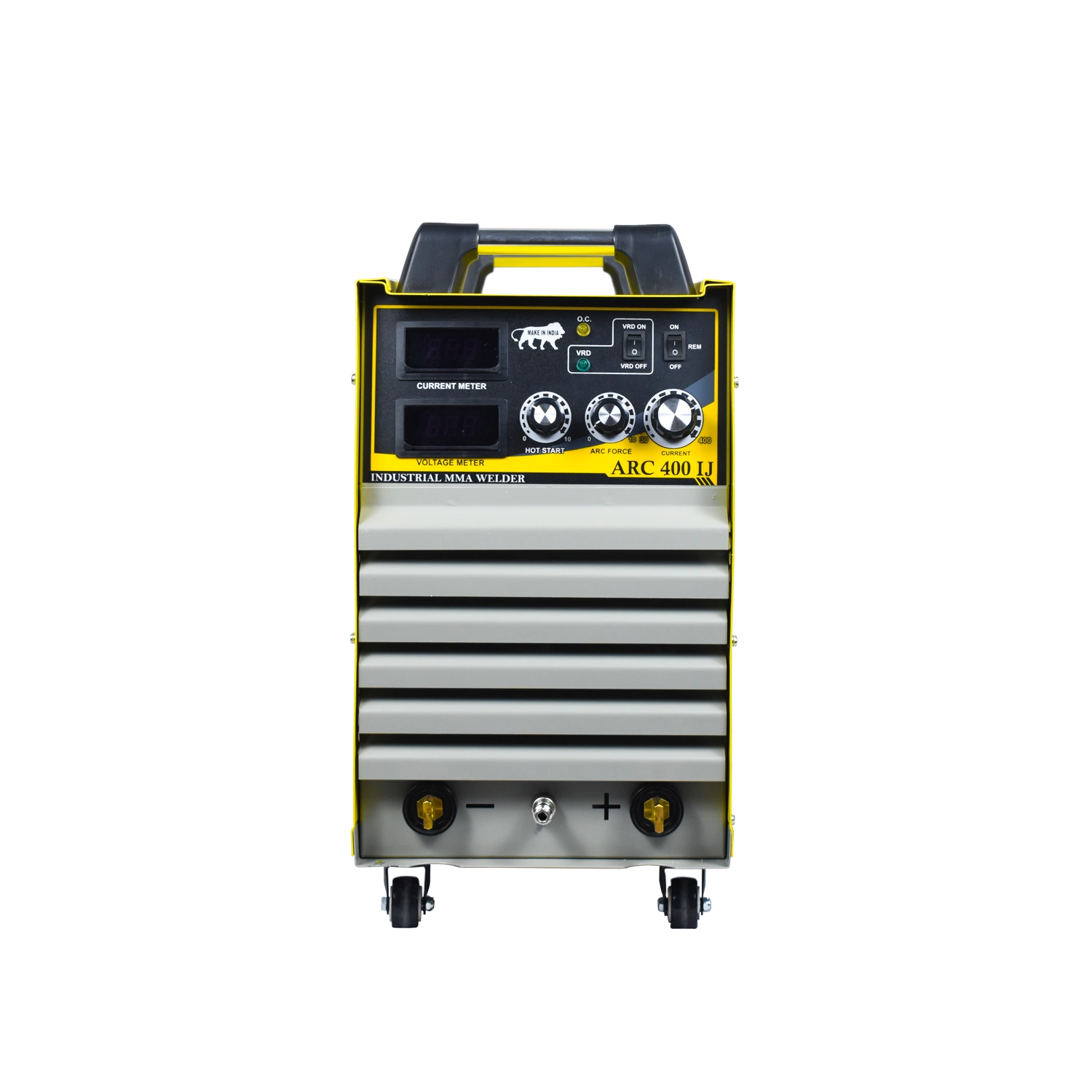

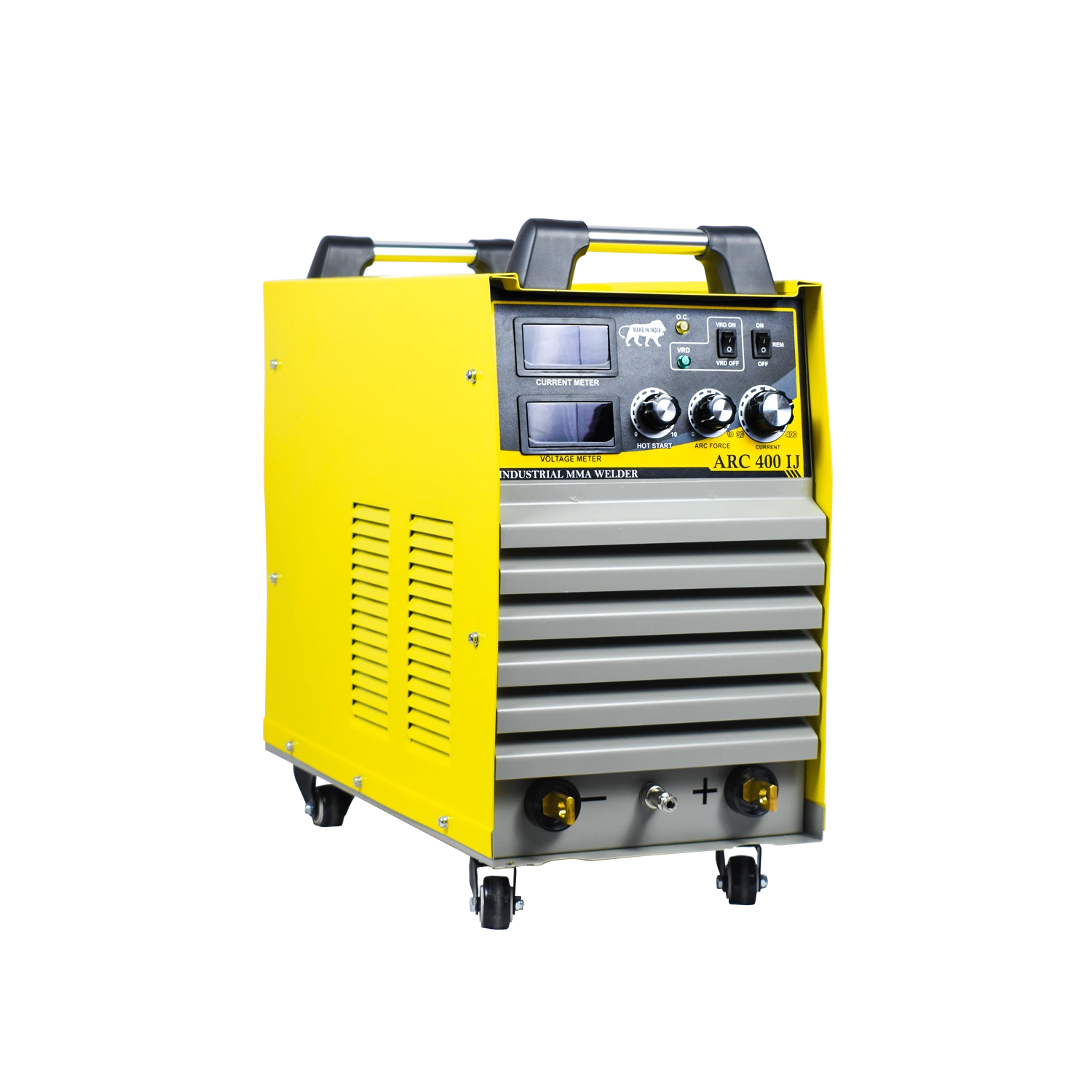

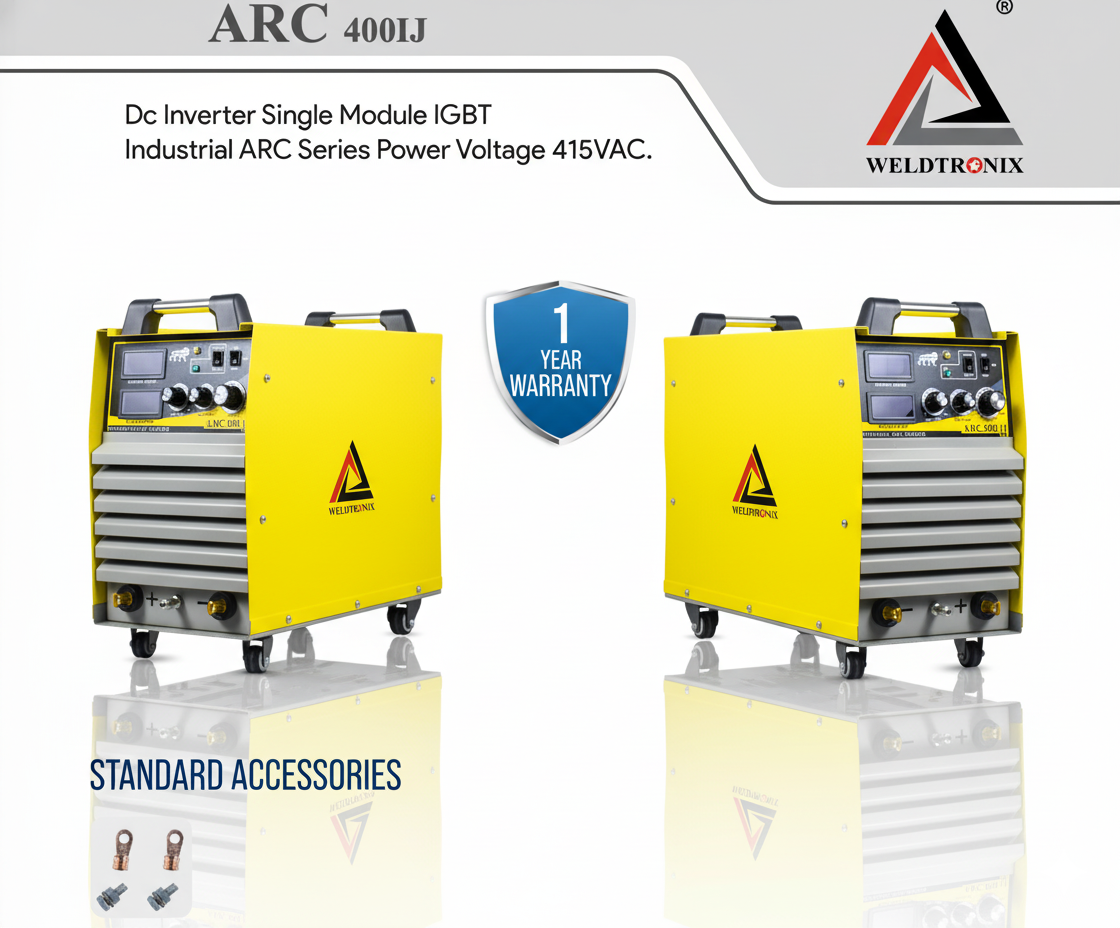

ARC 400 Ij Industrial Welder
The ARC 400 IJ is a three-phase welding machine designed for high-performance industrial welding where reliability and strength are essential. Built with heavy-duty inverter modules, it produces a smooth and powerful arc across a wide 20–400A range. Suitable for 4.0mm and occasionally 5.0mm electrodes, it is perfect for thick metal welding, structural fabrication, and heavy repair jobs. Its superior cooling system, high-duty cycle, and multi-layer protection ensure safe and continuous operation. This model is ideal for industries requiring power-packed welding performance with maximum stability.
₹38,232
Key Engineering Parameters
20-400
220V/440V AC
40% @ 400A
IGBT inverter-Based
1.6mm - 5.0mm Compatible
IP21S
Live Showroom Demo & Immediate Pickup
Peenya Industrial Area, Bengaluru · Mon–Sat: 9:00 AM – 8:00 PM
Engineering Datasheet & Applications
| Technology | IGBT inverter-Based |
|---|---|
| Input Voltage | 220V/440V AC |
| Output Current | 75A-400A DC |
| Stud Range | M6-M16 |
| Welding Time | 0.1-2.0 sec |
| Duty Cycle | 40% @ 400A |
| Construction | Yellow Metal Housing |
| Mobility | Sturdy Wheels |
| Weight | 85 kg |
| Applications | Steel Construction, Ship Decks, Bridge Construction |
| Material Compatibility | Mild Steel, Stainless Studs |
| Rated Input Voltage (V) | 415V ±15% |
| Input Frequency (Hz) | 50/60 |
| Rated Power (kVA) | 21.3 |
| Rated Input Current (A) | 32 |
| No Load Voltage (V) | 82V |
| Rated Output Current (A) | 20-400 |
| Duty Cycle (%) | 60 |
| Power Factor | 0.93 |
| Efficiency (%) | 85 |
| Insulation Class | F |
| Protection Class | IP21S |
| Welder Weight (kg) | 22KG |
| Igbt | 150A1200V |
| Rectifier Tube | 200A600V×2 MODULE |
| Bridge Diode | 100A1600V |
| Choke | YES |

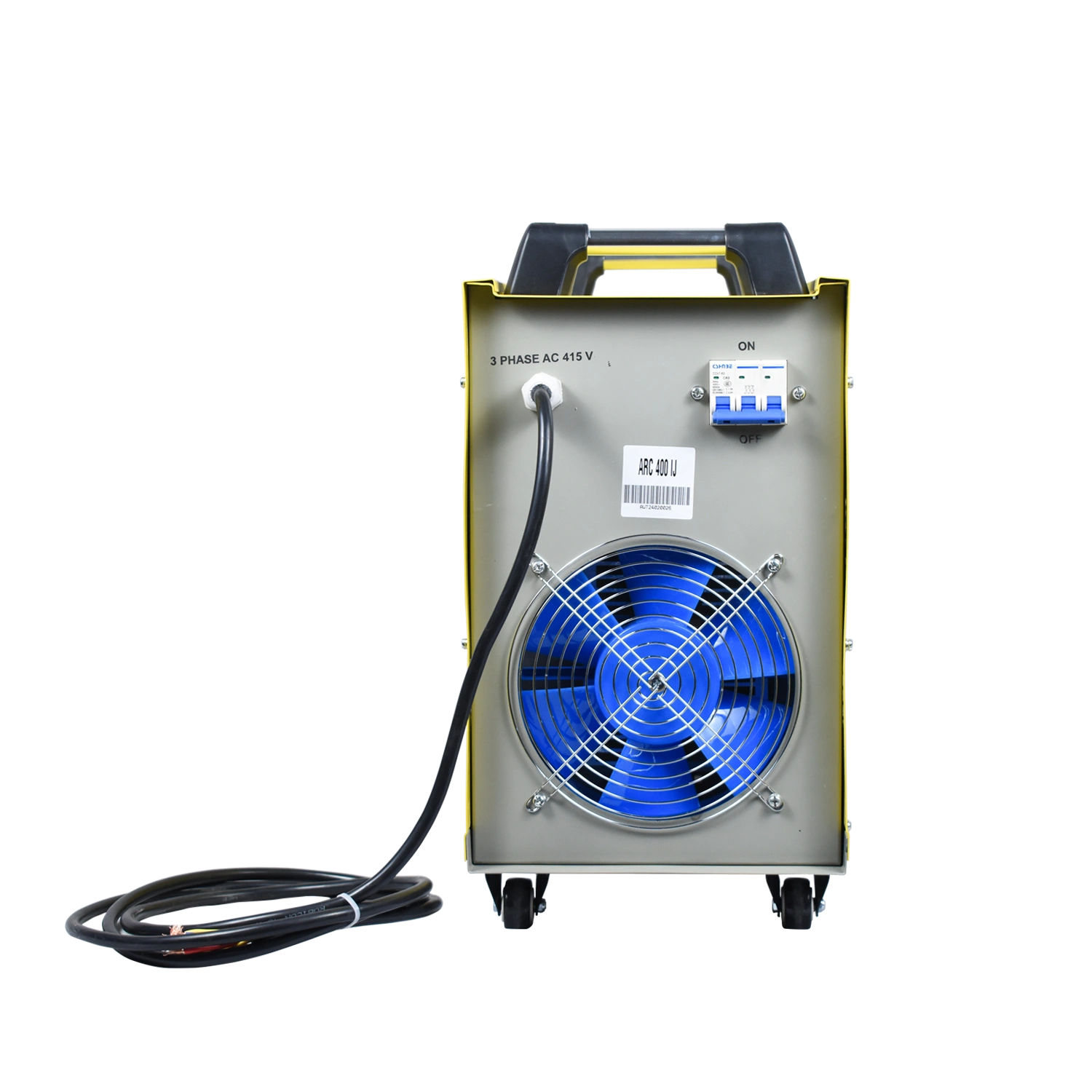

| Fan | 8 INCH 415V |
| Welder Size | 525×265×450 |
| Packing Size | 560×340×520 |
| Supported Electrode | 2.5(100%) - 3.15(100%) - 4.0(100%) - 5.0(40%) |
