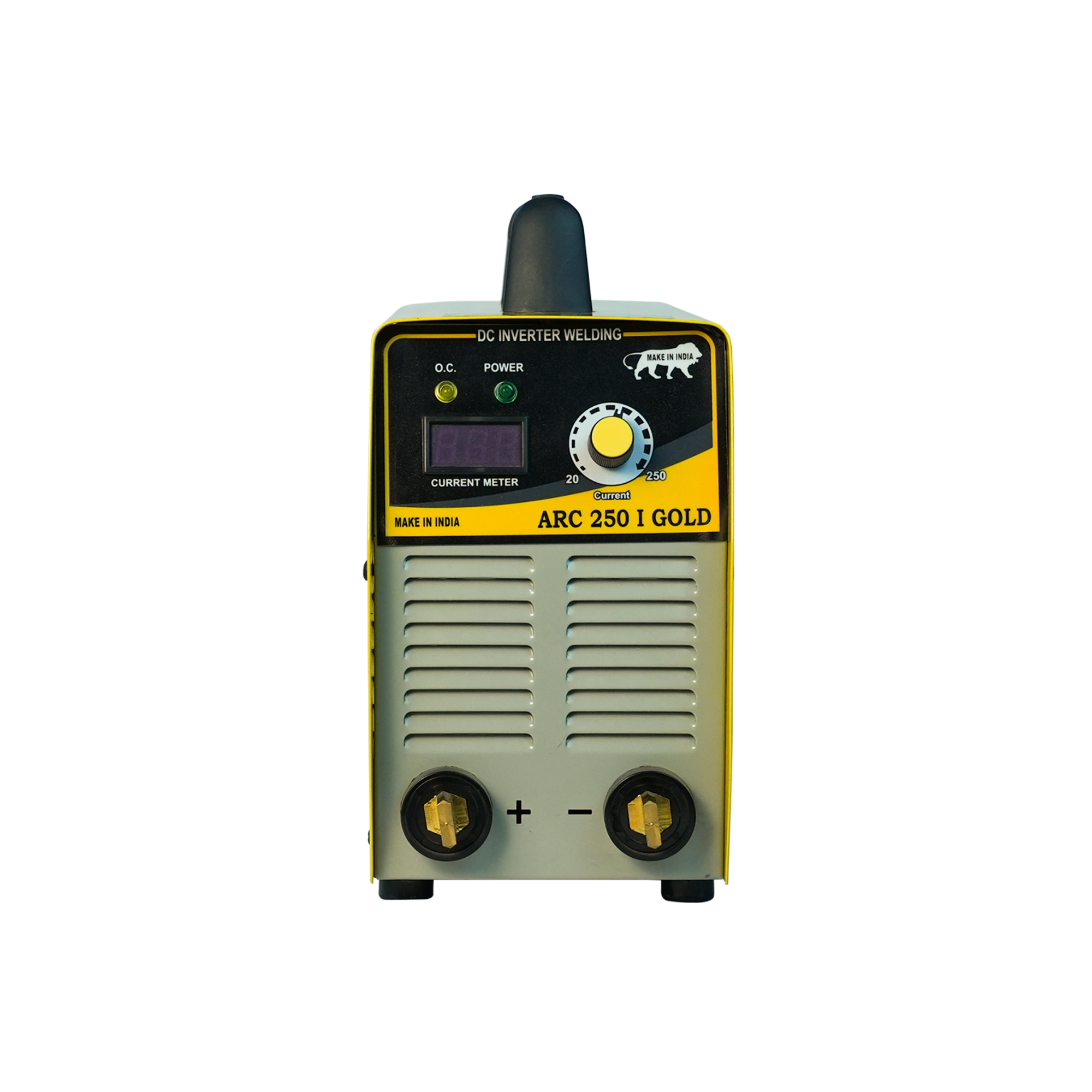

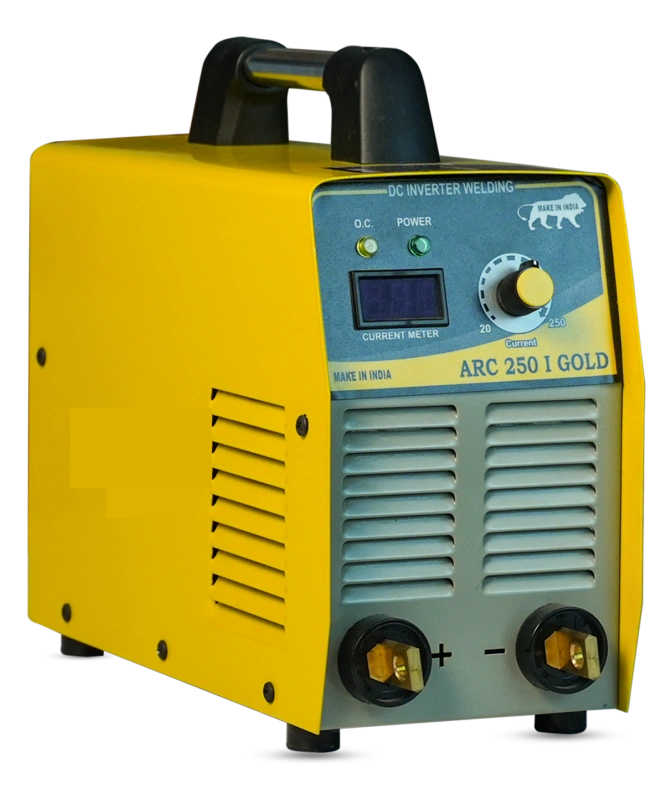

ARC 250 IGOLD Inverter Welding Machine
The ARC 250 IGOLD is engineered for industrial users who demand powerful performance, reliability, and premium build quality. With enhanced IGBT technology, it delivers strong, stable arc output suitable for welding mild steel, stainless steel, and general fabrication materials. The machine’s improved gold-series components ensure excellent efficiency, deep penetration, and reduced spatter. Supporting up to 3.15mm electrodes, it is widely used in fabrication workshops, repair units, and industrial maintenance operations. Its intelligent safety features and rugged casing make it a long-lasting investment for professionals.
₹6,844
Key Engineering Parameters
20A - 250A
AC 220V
60
Advanced Inverter Architecture
1.6mm - 5.0mm Compatible
IP21S
Live Showroom Demo & Immediate Pickup
Peenya Industrial Area, Bengaluru · Mon–Sat: 9:00 AM – 8:00 PM
Engineering Datasheet & Applications
| Rated Input Voltage (V) | AC 220V |
|---|---|
| Input Frequency (Hz) | 50/60 |
| Rated Power (kVA) | 3.8 |
| Rated Input Current (A) | 24A |
| No Load Voltage (V) | 68V |
| Rated Output Current (A) | 20A - 250A |
| Duty Cycle (%) | 60 |
| Power Factor | 0.93 |
| Efficiency (%) | 85 |
| Insulation Class | F |
| Protection Class | IP21S |
| Gross Weight (kg) | 5.4 |
| Welder Size (mm) | 360 × 150 × 260 |
| Packing Size | 430 × 200 × 320 |
| Supported Electrode | 2.5 – 3.15 |
