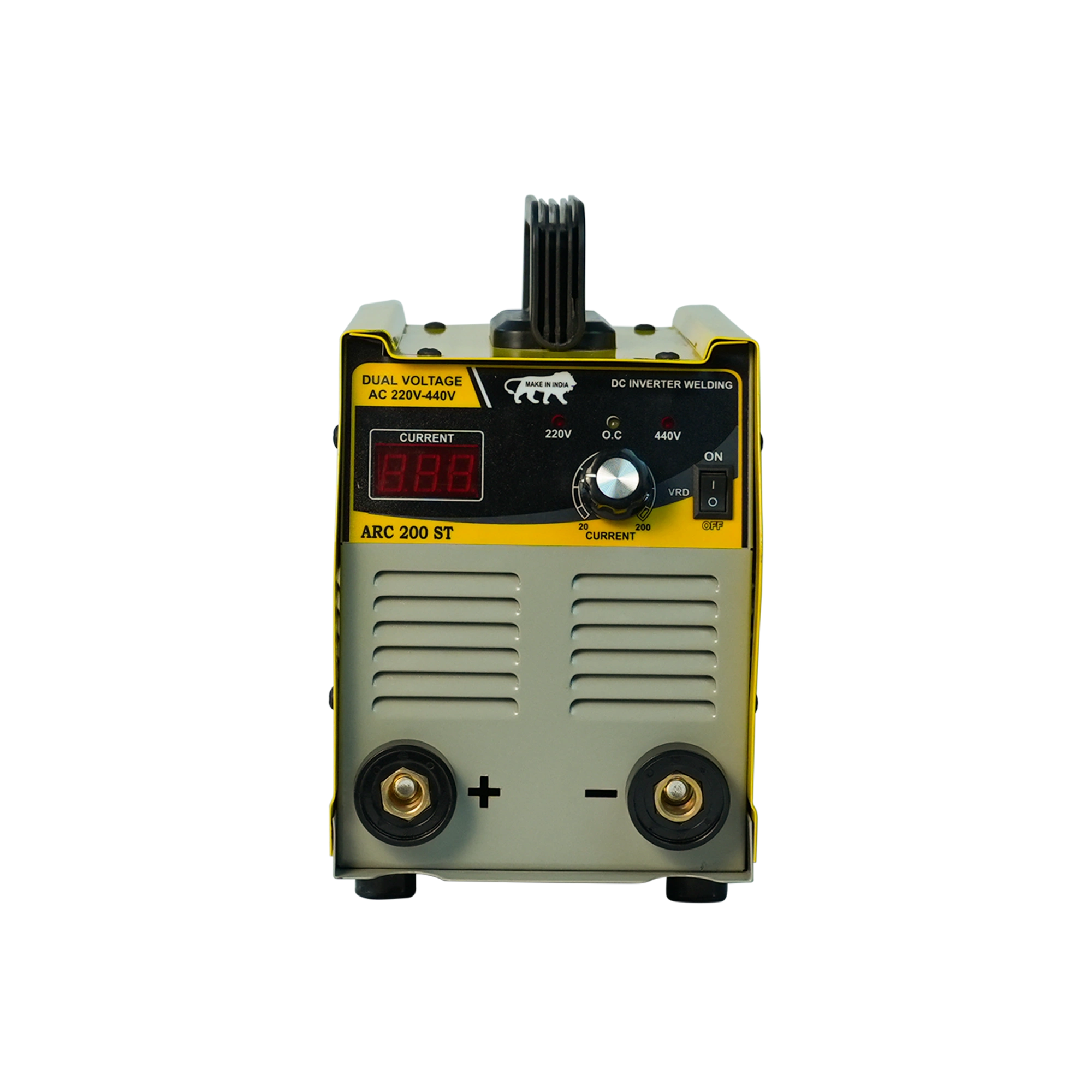

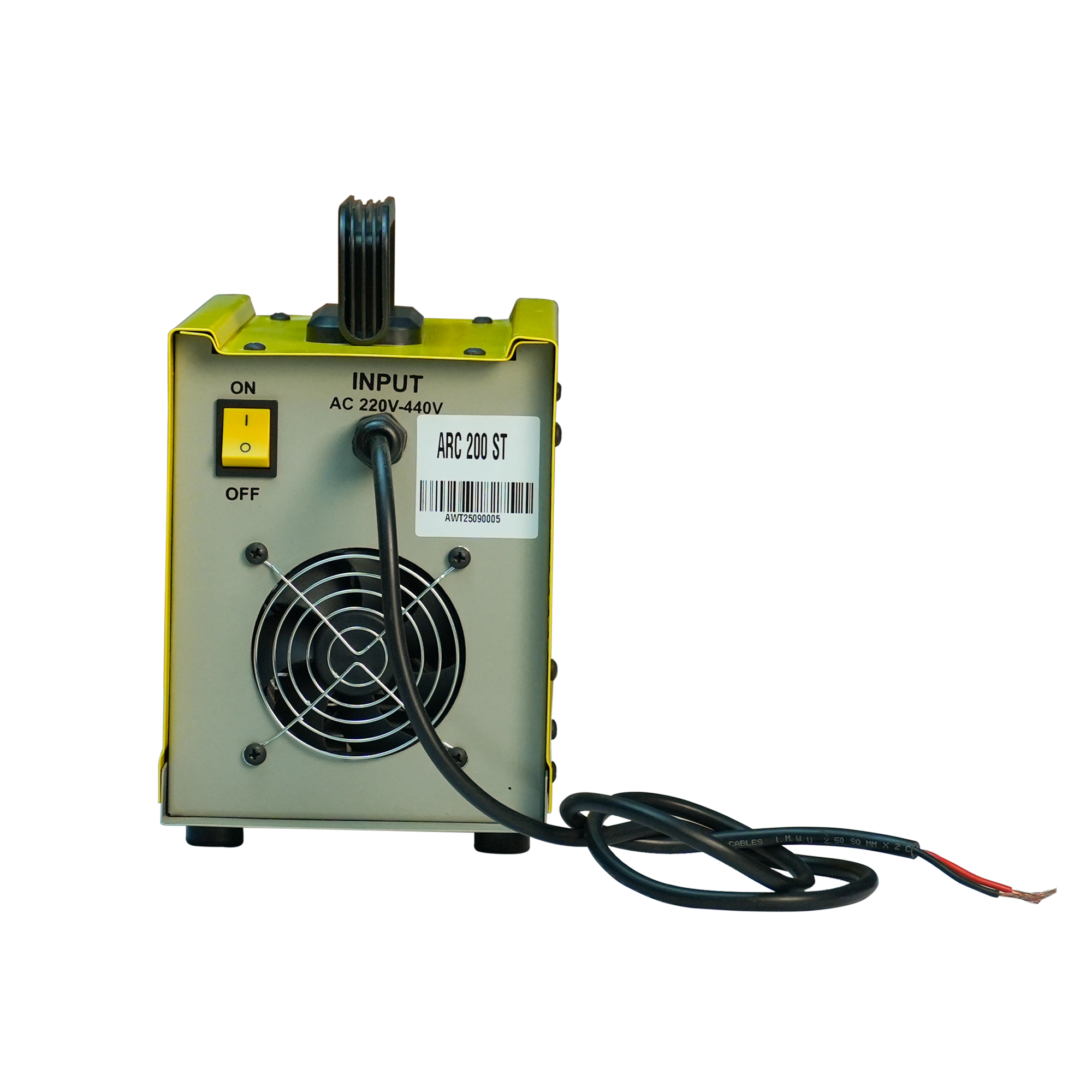

ARC 200 ST Heavy-Duty Inverter Welder
The ARC 200 ST is a compact yet powerful single + two-phase ARC welding machine engineered for small workshops, fabrication units, and field jobs requiring stable and efficient welding output. Designed with advanced IGBT inverter technology, it delivers smooth arc performance with reduced spatter for cleaner welds. Its lightweight build makes it easy to carry onsite while still offering reliable 20–200A current range for multiple applications. Ideal for electrodes up to 3.15mm, this model ensures high efficiency and strong penetration on mild steel and general-purpose welding tasks. Built for durability, it includes overload protection, energy-efficient operation, and consistent performance even in low-voltage conditions—perfect for daily industrial and commercial use.
₹6,136
Key Engineering Parameters
20A-200A
AC 220V/440V
60
Advanced Inverter Architecture
1.6mm - 5.0mm Compatible
IP21S
Live Showroom Demo & Immediate Pickup
Peenya Industrial Area, Bengaluru · Mon–Sat: 9:00 AM – 8:00 PM
Engineering Datasheet & Applications
| Rated Input Voltage (V) | AC 220V/440V |
|---|---|
| Input Frequency (Hz) | 50/60 |
| Rated Power (kVA) | 4.8 |
| Rated Input Current (A) | 30A |
| No Load Voltage (V) | 68V |
| Rated Output Current (A) | 20A-200A |
| Duty Cycle (%) | 60 |
| Power Factor | 0.73 |
| Efficiency (%) | 85 |
| Insulation Class | F |
| Protection Class | IP21S |
| Gross Weight (kg) | 4.6 |
| Welder Size | 250×160×220 |
| Packing Size | 280×180×280 |
| Supported Electrode | 2.5(100%) - 3.15(40%) |
