Home/Machinery Catalog/TIG Series/ESAB TIG 401iw Heavy Duty TIG Power Source with Water Cooling Unit
ESAB
Peenya Warehouse Stock
Official Technical Catalog (PDF)
Download Wiring Diagrams & Ratings
TIG Series
Model SKU: esab-tig-401iw(4.9/5 Industrial Rating)

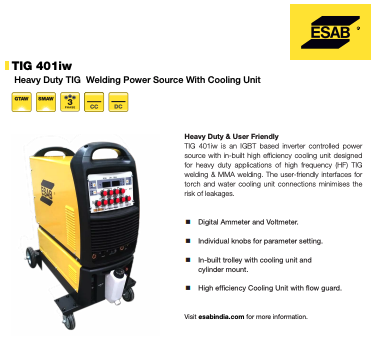

ESAB TIG 401iw Heavy Duty TIG Power Source with Water Cooling Unit
The ESAB TIG 401iw is a heavy-duty industrial TIG and MMA welding power source complete with a built-in high-efficiency water cooling unit and cylinder-mounted trolley. Engineered for extended high-amperage welding runs, the TIG 401iw features digital ammeter and voltmeter displays, individual precision knobs for fine tuning, built-in flow guard protection, and robust industrial chassis designed for demanding factory environments.
Commercial Ex-Warehouse Price
₹1,68,000+ 18% GST
Total Invoice (Incl. 18% GST):
₹1,98,240
GST Input Tax Credit (ITC) Available for Registered BusinessesHSN / SAC Code: 8468 / 8515
Key Engineering Parameters
Output Current
Standard Output
Input Power Supply
415V ±15%, 3-Phase, 50/60 Hz
Rated Duty Cycle
400A
Inverter Technology
Industrial Inverter with In-Built Cooling
Wire / Electrode Sizing
1.6mm - 5.0mm Compatible
Protection & Enclosure
IP21S
Live Showroom Demo & Immediate Pickup
Peenya Industrial Area, Bengaluru · Mon–Sat: 9:00 AM – 8:00 PM
Technical Documentation & Support

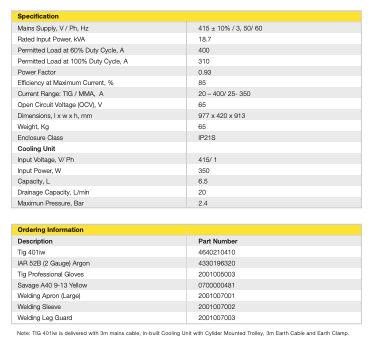

Engineering Datasheet & Applications
| Technology | Industrial Inverter with In-Built Cooling |
|---|---|
| Processes | TIG (GTAW), MMA (SMAW) |
| Mains Supply | 415V ±15%, 3-Phase, 50/60 Hz |
| Permitted Load at 60% Duty Cycle | 400A |
| Permitted Load at 100% Duty Cycle | 310A |
| Cooling Unit Motor Power | 350W |
| Enclosure Class | IP21S |
| Features | Digital Meters, In-built Trolley, Flow Guard Protection |
Alternative Amperage & Series Models
View All 60 MachinesCompare Related Welding Systems
