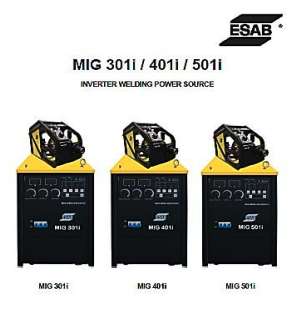

ESAB MIG 501i Heavy Industrial Inverter MIG Power Source 500A

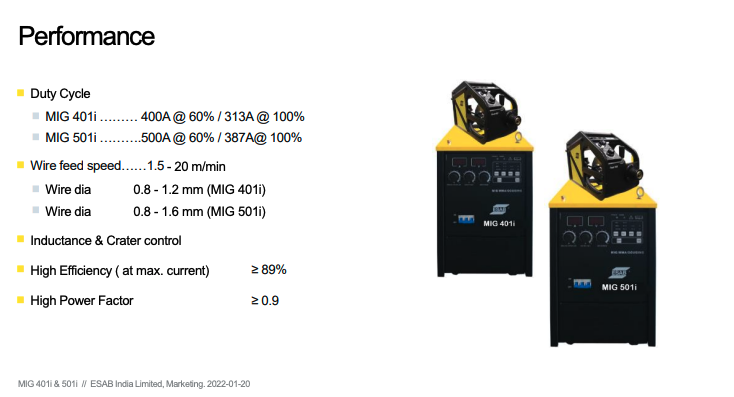

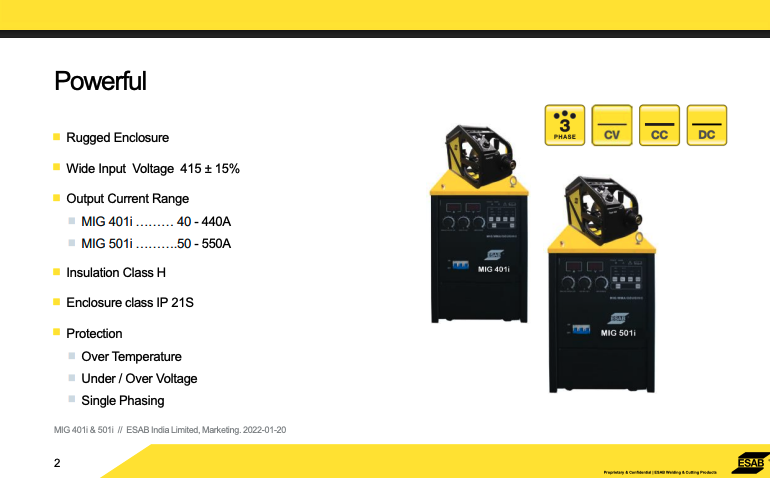

The ESAB MIG 501i is a powerhouse 500A inverter welding system designed for heavy structural fabrication, shipyards, and high-productivity industrial manufacturing. Operating at 500A @ 60% duty cycle and 387A @ 100% duty cycle, it supports wire diameters from 0.8mm up to 1.6mm with wire feeding speeds up to 20 m/min. Features multi-process MIG/MMA/Gouging capability, robust thermal and voltage protections, and rugged chassis with wheels for mobility.
₹1,82,900
Key Engineering Parameters
50 - 550A
415V ±15%, 3-Phase, 50 Hz
500A @ 60%, 387A @ 100%

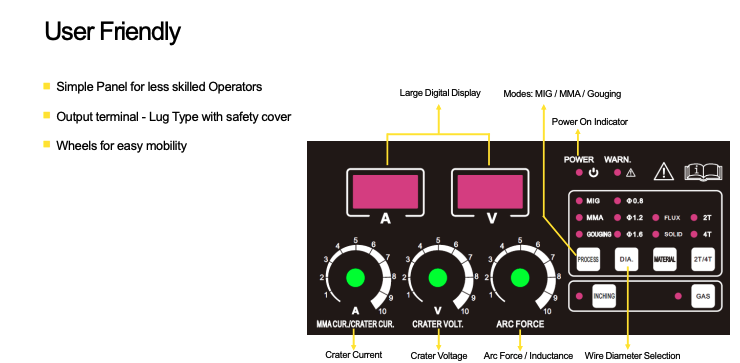

Heavy Industrial Inverter MIG/MMA/Gouging
0.8 - 1.6 mm (MS/SS/FC)
IP21S Industrial Enclosure
Live Showroom Demo & Immediate Pickup
Peenya Industrial Area, Bengaluru · Mon–Sat: 9:00 AM – 8:00 PM

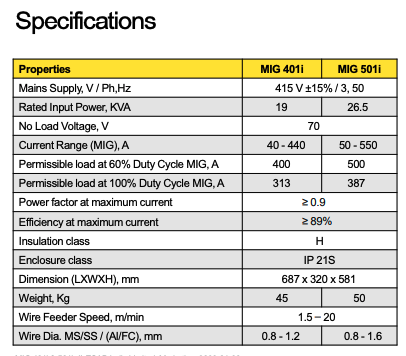

Engineering Datasheet & Applications
| Technology | Heavy Industrial Inverter MIG/MMA/Gouging |
|---|---|
| Mains Supply | 415V ±15%, 3-Phase, 50 Hz |
| Rated Input Power | 26.5 kVA |
| No Load Voltage | 70V |
| Current Range | 50 - 550A |
| Duty Cycle | 500A @ 60%, 387A @ 100% |
| Wire Feed Speed | 1.5 - 20 m/min |
| Wire Diameter | 0.8 - 1.6 mm (MS/SS/FC) |
| Efficiency | ≥ 89% |
| Power Factor | ≥ 0.9 |
| Dimensions | 687 x 320 x 581 mm |
| Weight | 50 kg |
