Is Ador Champ TIG 400 AD AC/DC Mixed Pulsed TIG Welding System available for in-store pickup in Bangalore?

Yes, Ador Champ TIG 400 AD AC/DC Mixed Pulsed TIG Welding System is available in stock for same-day in-store pickup and live demonstrations at Shrinidhi Machine Tools, located in Peenya Industrial Area, Bengaluru, Karnataka.

What is the warranty and support on Ador Champ TIG 400 AD AC/DC Mixed Pulsed TIG Welding System?

This product comes with a 1-Year comprehensive warranty, genuine spare parts availability, and expert technician support from Shrinidhi Machine Tools.

Can I get delivery in Bangalore and Karnataka?

Yes, we offer free local delivery within Bangalore and expedited insured shipping across Karnataka and all India.

Home/Machinery Catalog/TIG Series/Ador Champ TIG 400 AD AC/DC Mixed Pulsed TIG Welding System

WhatsApp Inquiry

Ador Welding

Peenya Warehouse Stock

Ador Champ TIG 400 AD AC/DC Mixed Pulsed TIG Welding System - View 1

Official Technical Catalog (PDF)

Download Wiring Diagrams & Ratings

TIG Series

Model SKU: ador-champtig-400-ad

(4.9/5 Industrial Rating)

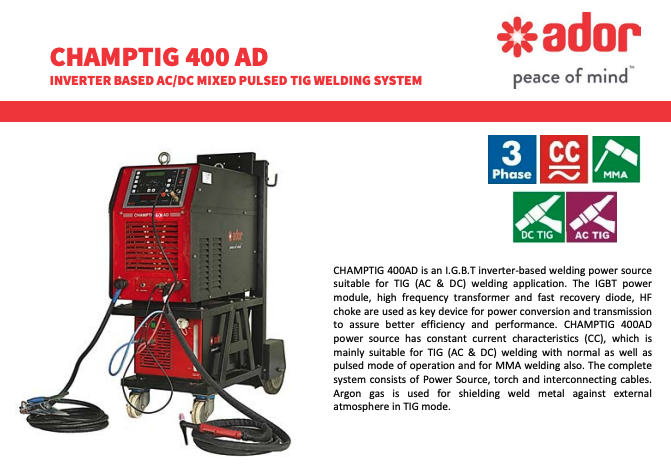

Ador Champ TIG 400 AD AC/DC Mixed Pulsed TIG Welding System

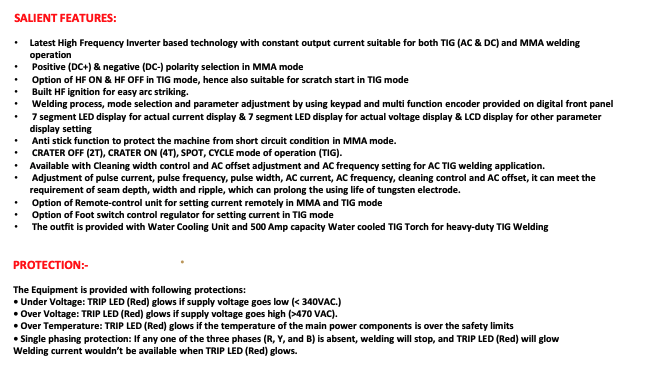

The Ador Champ TIG 400 AD is an advanced IGBT inverter-based welding power source engineered for demanding AC & DC TIG as well as MMA welding applications. Utilizing high-frequency power conversion with constant current (CC) characteristics, it provides exceptionally stable arc control, low spatter, and deep penetration across mild steel, stainless steel, aluminum, copper, and titanium alloys. Features include mixed pulsed TIG mode, high-frequency arc striking, digital parameter adjustment via front panel encoder and 7-segment LED display, crater fill (2T/4T/spot/cycle), comprehensive thermal/over-voltage/single-phasing protection, and compatibility with water-cooling units.

Commercial Ex-Warehouse Price

₹1,45,000+ 18% GST

Total Invoice (Incl. 18% GST):

₹1,71,100

GST Input Tax Credit (ITC) Available for Registered BusinessesHSN / SAC Code: 8468 / 8515

Key Engineering Parameters

Output Current

10A - 400A

Input Power Supply

415V ±15%, 3-Phase, 50/60 Hz

Rated Duty Cycle

60% @ 400A, 100% @ 310A

Inverter Technology

IGBT Inverter-Based

Wire / Electrode Sizing

1.6mm - 5.0mm Compatible

Protection & Enclosure

IP21S, Insulation Class H

Live Showroom Demo & Immediate Pickup

Peenya Industrial Area, Bengaluru · Mon–Sat: 9:00 AM – 8:00 PM

Call Showroom Directions

Technical Documentation & Support

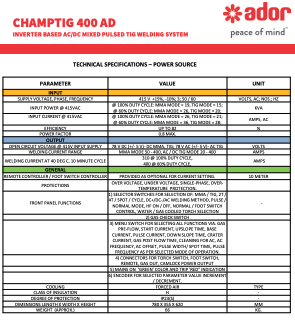

Engineering Datasheet & Applications

Technology	IGBT Inverter-Based
Welding Process	TIG (AC & DC), Mixed Pulsed TIG, MMA (Stick)
Input Supply	415V ±15%, 3-Phase, 50/60 Hz
Current Range	10A - 400A
Duty Cycle	60% @ 400A, 100% @ 310A
Ignition	High Frequency (HF) & Scratch Start
Modes	2T, 4T, Spot, Cycle Mode

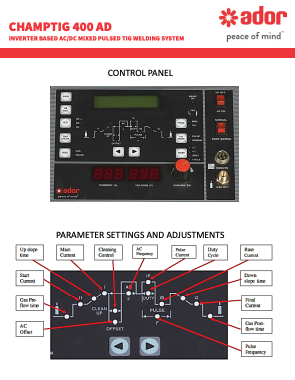

Controls	Pulse frequency, pulse width, AC balance, AC frequency, clean width
Protection Class	IP21S, Insulation Class H
Protections	Under Voltage (<340V), Over Voltage (>470V), Over Temperature, Single Phasing
Cooling	Forced Air / Compatible with WCU 302 Water Cooling Unit
Weldable Materials	Aluminum, Magnesium, Stainless Steel, Carbon Steel, Copper, Titanium
